What it does?

SmoothGrad is a denoising wrapper around gradient saliency. Raw gradients are visually noisy, so SmoothGrad adds a small amount of random noise to the input many times, computes the gradient for each noisy copy, and averages the results. The averaging cancels the high-frequency noise and leaves a cleaner map, on the intuition that the true signal is stable under small perturbations while the noise is not. It is a simple, widely used way to make any gradient method look better. We apply it to the VCS by perturbing each cause, averaging the gradients, and correlating with the true causal map. On smooth content outputs the averaging gives a modest improvement over plain saliency. The important negative result is on a sprite's position. There the naive gradient is exactly zero because the position is a discrete step set by strobe timing, and averaging many zeros is still zero: adding input noise cannot manufacture a gradient that the hard machine does not provide. Only a differentiable surrogate can restore one, and even then its faithfulness stays low. SmoothGrad is a good test of whether the popular 'just denoise the gradient' fix rescues attribution on the discrete game logic. It does not.

SmoothGrad result

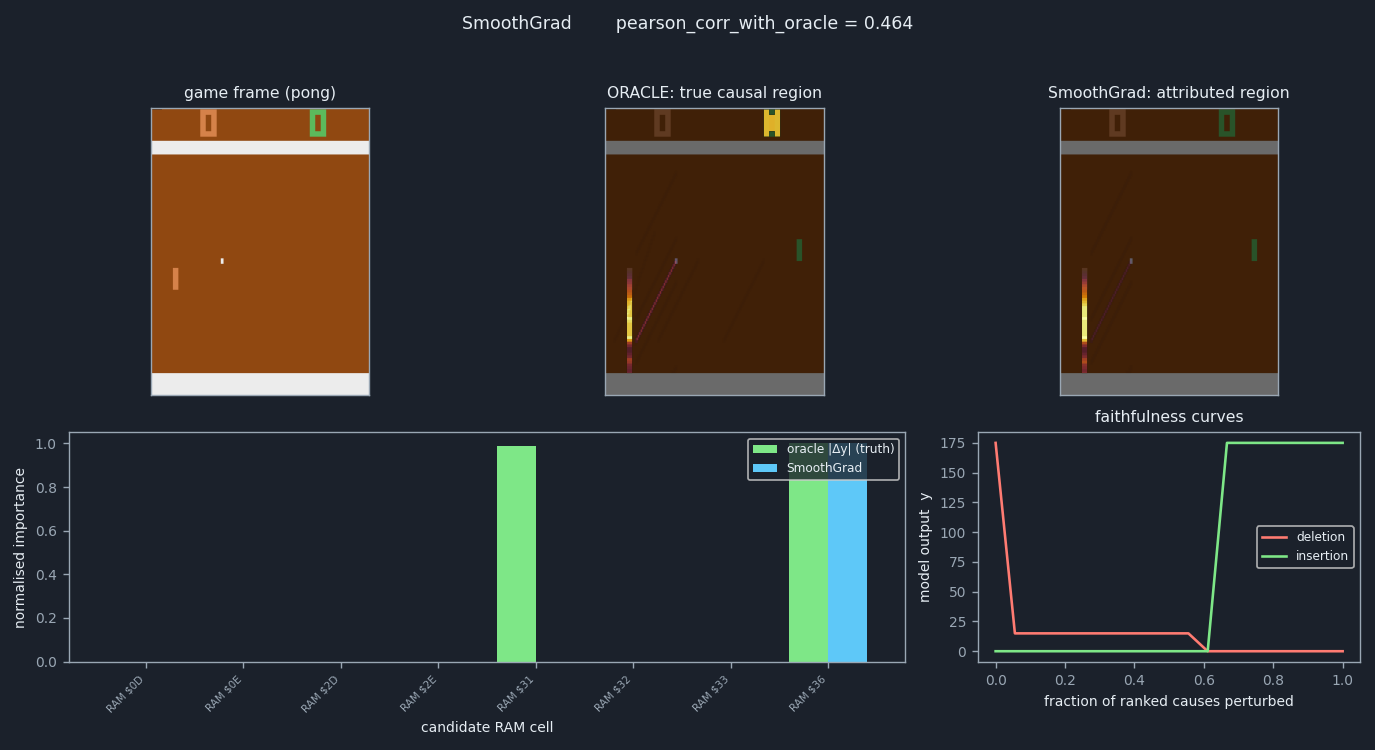

Top row (image domain, as in Paper 1): the game frame, then the oracle's true causal region and this method's attributed region — each painted onto the frame through the screen footprint of the RAM cells it implicates (brighter = more important). A faithful method's heat matches the oracle's. Bottom: per-cell importance — oracle (green) vs method (blue) — and the deletion/insertion faithfulness curves (perturb the ranked causes and watch the output move). Note: the image-domain overlay footprints are illustrative, computed on the pre-redesign boot frame; the bars, curves and all reported numbers come from the re-run records on the shared gameplay states. pearson_corr_with_oracle = 0.464 — this example only (pong, state f90+15); the audit aggregate is below.

Reading this example's causal region

This example explains the content of RAM $36 (byte 54) — the most causally-active concept byte at this state. Its strongest true-causes are: RAM $36 (the play area — ball / paddles); RAM $31 (17% of its footprint sits in the score band, the rest in the play area). The score digits appear in the region because RAM $31 reaches them: perturbing it over the 30-frame NOOP window changes the game outcome, and hence the score — a downstream effect, not direct rendering.

Gradient family · saliency averaged over noise

Learn the method — a beginner's guide

New to explainable AI? This block explains the method as it is used on neural networks, then how we run the very same method on an Atari 2600, where — unlike for a network — we know the right answer. Every implementation step links to the code. See also the XAI primer for the shared vocabulary.

Normal distributionGaussian noiseMonte Carlo methodSmoothing

The idea in plain words

Vanilla saliency maps of image networks look speckled. Neighbouring pixels get wildly different values. Smilkov et al. argued that this is not what the network “thinks”. It is because the gradient of a deep ReLU network jumps around from point to point: move the input a hair and the gradient changes a lot. The map is accurate for that exact point, but noisy as a summary.

SmoothGrad fixes the look with a simple trick: make many copies of the input, add a little random noise to each, compute the saliency map of every copy, and average them. The random jumps cancel out; what is consistently there survives. In the authors' words, it removes noise by adding noise. It works as a wrapper around any gradient method. The catch is in the word look. Smoothing makes maps cleaner to the eye, and whether it makes them more faithful is a separate question. On the VCS we can answer that question exactly.

How it works on a neural network

With \(y = f(x)\) as in vanilla saliency, SmoothGrad averages the gradient over Gaussian (normal-distribution) noise of standard deviation \(\sigma\):

\[ \mathrm{SG}_i(x) \;=\; \frac{1}{N}\sum_{k=1}^{N} \left|\frac{\partial f}{\partial x_i}\big(x + \varepsilon_k\big)\right|, \qquad \varepsilon_k \sim \mathcal{N}(0, \sigma^2 I). \]

This is a Monte Carlo estimate (an average over random samples) of the expected gradient in a fuzzy neighbourhood of \(x\). Smilkov et al. recommend \(\sigma\) at 10–20 % of the input range and \(N\) around 50. Some variants average the signed gradient; ours averages absolute values.

Toy example: smoothing can wake up a dead gradient… Take a single ReLU, \(f(x) = \max(0, x)\), at \(x = -0.1\). The vanilla gradient is 0: saliency says the input does not matter. Now draw \(N = 4\) noise values \(\varepsilon = (-0.8, 0.3, 1.2, -0.2)\). The noisy inputs are \((-0.9, 0.2, 1.1, -0.3)\), with gradients \((0, 1, 1, 0)\). SmoothGrad gives \(0.5\). With many samples and \(\sigma = 1\) it converges to \(P(x + \varepsilon > 0) \approx 0.46\). Because the kink is within reach of the noise, some samples land where the slope is non-zero.

…but not a flat one. Now take a step, \(f(x) = \mathbb{1}[x > 0]\). Its derivative is 0 on both sides of the jump. Every noisy sample also has gradient 0, and the average of zeros is zero. And for a straight line, \(f(x) = 3x\), every sample has gradient 3: smoothing changes nothing. Remember both cases: the VCS gives us exactly these two.

Recipe

  1. Choose the noise level \(\sigma\) (relative to the input range) and the sample count \(N\).
  2. Draw \(N\) noise vectors \(\varepsilon_k \sim \mathcal{N}(0, \sigma^2 I)\), one value per input.
  3. For each noisy copy \(x + \varepsilon_k\), run one forward and one backward pass and take \(|\partial y/\partial x_i|\).
  4. Average the \(N\) maps. Optionally also keep the noise-free map for comparison.
  5. Display the averaged map. Cost: \(N\) backward passes instead of one.

From a neural network to the Atari

The network \(f\)The Atari 2600 VCS running the ROM, emulated bit-exactly by jutari; its differentiable twin is JuTari.Diff.
The input \(x\)The 128 RAM bytes at the intervention frame \(f^*\) (after 90 frames of seeded random play).
Input noiseGaussian noise with \(\sigma = 8\) raw byte units (about 3 % of the 0–255 range) added to every RAM byte, \(N = 50\) copies, fixed seed.
The output \(y\)A content output (one RAM byte read one-hot) and a position output (screen pixels changed versus the un-intervened frame, made differentiable by the bilinear sampler).
“Is the smoothed map right?”The intervention oracle: poke each cause, re-run the real ROM, measure \(|\Delta y|\).

How we apply it to the VCS

The runner computes \(\mathrm{SG}(u) = \frac1N\sum_k |\partial y/\partial u|_{u+\varepsilon_k}\) over the RAM vector \(u\) with Zygote, and returns the noise-free vanilla \(|\partial y/\partial u|\) next to it. Both are scored against the oracle, so the effect of smoothing on faithfulness is measured directly, not just its effect on looks.

Read the code

XAI the interpretability method   substrate the bit-exact emulator it runs on (jutari, Julia).

Reading the result

Put this page next to vanilla saliency. On the content output the two maps are the same, and so is their agreement with the oracle: a single spike at the read byte, against an oracle that usually lights up several causes. On the position output, the smoothed sampler map is often fainter than the raw sampler map, and its agreement with the oracle stays weak. The lesson is general. SmoothGrad changes how a map looks, but here it does not change how faithful the map is. It cannot add causal information the gradient never carried.

Pitfalls

Try it yourself

julia --project=jutari tools/xai_study/phaseB_attribution/smoothgrad.jl --games core

Writes smoothgrad_<game>_{content,ball_pixel}.json/.npz and smoothgrad_core_summary.json into tools/xai_study/phaseB_attribution/out/. Defaults: --sigma 8 --n-samples 50. Add --sigma-sweep to reproduce the \(\sigma/N\) robustness grid (it re-runs every game per grid point).

Original papers & further reading

Read next: Vanilla gradient (saliency) · Integrated Gradients · Guided Backprop · RISE

How it's scored

The score is the Pearson correlation of the SmoothGrad map with the oracle's exact causal map, reported raw, and the grading is always against the intervention oracle. Averaging the gradient over input noise denoises the map, so on smooth content outputs it gives a small improvement over plain saliency. The hard case is a sprite's position. The position is a discrete step set by strobe timing, so the naive gradient there is provably exactly zero, and averaging many zeros is still zero: adding input noise cannot create a gradient the hard machine does not provide. To be strict, the audit turns on the differentiable sampler, which restores a non-zero position gradient, but that restored gradient is faithful on only a minority of games, so the position score stays low. The content score stays high. So the all-regime faithfulness sits in the middle, as an average of the strong content result and the weak position result across the 44 scored games. The audit box reports that measured number. SmoothGrad is a clean test of whether the popular denoise-the-gradient fix rescues attribution on discrete game logic, and the score shows that it does not.

The score is measured against the §1 intervention oracle — never against another interpretability method. F (faithful) is always vs the oracle; see the execution stack. How each of F / S / M is actually computed for this method (and whether it matches the paper) is in the box just below; the numbers are in the In the audit box under it.

How F, S, M are computed here

The exact formula this method uses for each score, read from its runner, and whether it matches the paper's §3 (F ∧ S ∧ M triad) definition. From the committed audit fsm_math_phaseB.json.
