What it does?

Guided backpropagation is a variant of saliency that changes how the signal flows backward through the network. At each rectifier it keeps only the positive contributions and zeroes the negative ones, on both the forward activation and the backward gradient. The effect is a much sharper, cleaner-looking saliency map, which is why the method became popular for visualising what a network 'sees'. The intuition is that suppressing the negative evidence isolates the features that positively drive the output. We apply the same rectified-backward rule to the VCS and correlate the resulting map with the true causal map. A well-known concern, raised by Adebayo and colleagues, is that guided backprop can act more like an edge detector than a true explanation, producing similar maps even when the model is randomised. We run exactly that sanity check on the machine itself. On smooth content outputs the method partly tracks the true cause. On a sprite's position it hits the gradient wall: the position is a discrete strobe-timed step, so the underlying gradient is zero, and the rectified backward path leaves it at zero here rather than restoring any signal. Combined with its failure of the randomisation check, this makes guided backprop a revealing case: it looks sharp and convincing yet does not depend on what the program actually computes.

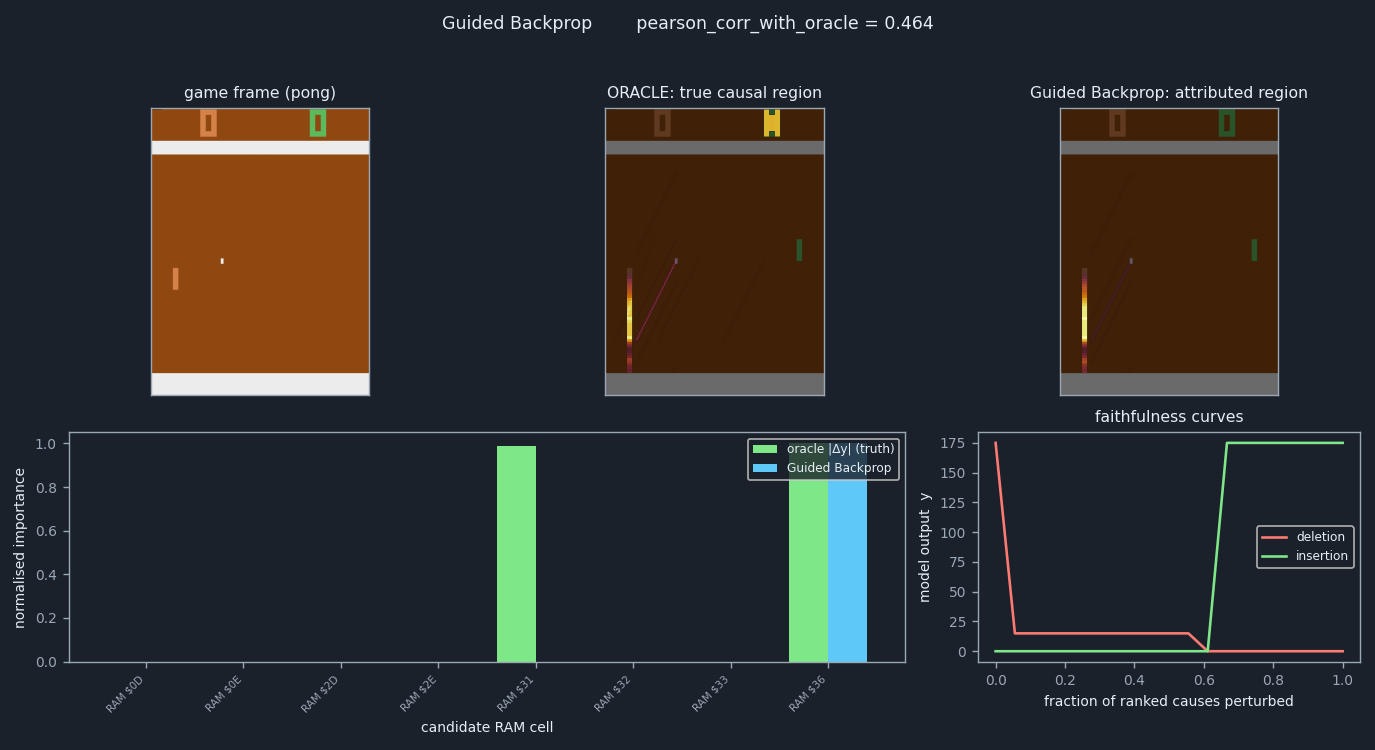

Guided Backprop result

Top row (image domain, as in Paper 1): the game frame, then the oracle's true causal region and this method's attributed region — each painted onto the frame through the screen footprint of the RAM cells it implicates (brighter = more important). A faithful method's heat matches the oracle's. Bottom: per-cell importance — oracle (green) vs method (blue) — and the deletion/insertion faithfulness curves (perturb the ranked causes and watch the output move). Note: the image-domain overlay footprints are illustrative, computed on the pre-redesign boot frame; the bars, curves and all reported numbers come from the re-run records on the shared gameplay states. pearson_corr_with_oracle = 0.464 — this example only (pong, state f90+15); the audit aggregate is below.

Reading this example's causal region

This example explains the content of RAM $36 (byte 54) — the most causally-active concept byte at this state. Its strongest true-causes are: RAM $36 (the play area — ball / paddles); RAM $31 (17% of its footprint sits in the score band, the rest in the play area). The score digits appear in the region because RAM $31 reaches them: perturbing it over the 30-frame NOOP window changes the game outcome, and hence the score — a downstream effect, not direct rendering.

Gradient family · a modified backward pass

Learn the method — a beginner's guide

New to explainable AI? This block explains the method as it is used on neural networks, then how we run the very same method on an Atari 2600, where — unlike for a network — we know the right answer. Every implementation step links to the code. See also the XAI primer for the shared vocabulary.

Rectified linear unit (ReLU)BackpropagationEdge detectionSaliency map

The idea in plain words

Vanilla saliency maps of image classifiers look grainy. Positive and negative gradient signals mix as they flow back through the network. Guided backpropagation changes one rule in the backward pass to clean this up. At every ReLU (rectified linear unit, \(\max(0, z)\), the standard on/off nonlinearity of deep nets) it lets a gradient through only if the unit was active in the forward pass and the gradient arriving from above is positive. Negative signals (“this feature argues against the class”) are thrown away.

The result looks spectacular: crisp, edge-like pictures of the object. That is why the method became popular. But it is no longer the gradient of anything. It is a hand-modified signal. Adebayo et al. (2018) asked a simple question: does the map change if we destroy the model? For guided backprop it barely does. The map behaves more like an edge detector applied to the input than an explanation of the network. This test, the model-randomisation sanity check, is part of our experiment, run on the machine itself.

How it works on a neural network

Take one ReLU unit \(h = \max(0, z)\) and let \(g = \partial y/\partial h\) be the gradient arriving from above. The three backward rules differ only in what they send down to \(z\):

\[ \text{backprop: } \mathbb{1}[z>0]\,g, \qquad \text{deconvnet: } \mathbb{1}[g>0]\,g, \qquad \text{guided: } \mathbb{1}[z>0]\,\mathbb{1}[g>0]\,g . \]

Guided backprop combines the two masks. Applied at every ReLU of the network it yields a map \(G(x)\) that, unlike saliency, is not the derivative \(\nabla f(x)\).

Toy example. Two inputs, two hidden ReLUs, one output: \(h_1 = \max(0, 2x_1 + x_2)\), \(h_2 = \max(0, x_1 - x_2 + 1)\), \(y = h_1 - h_2\). At \(x = (1, 1)\): \(h_1 = 3\), \(h_2 = 1\), \(y = 2\). Both units are active. From above, \(\partial y/\partial h = (1, -1)\).

The ranking flipped. \(h_2\) inhibits the output and \(x_2\) acts partly by reducing that inhibition. Guided backprop discards inhibition, so it cannot see this. Check the truth directly: raising \(x_2\) by 0.1 raises \(y\) by 0.2, raising \(x_1\) by 0.1 raises it by only 0.1. Here the vanilla gradient was right and the “cleaner” map was wrong.

Recipe

  1. Run the forward pass and record which ReLUs are active (\(z > 0\)).
  2. Start the backward pass from the scalar output \(y\), as in vanilla saliency.
  3. At every ReLU, pass the gradient down only where \(z > 0\) and the incoming gradient is \(> 0\); set everything else to 0.
  4. Continue to the input. Display the (usually absolute) result as a heat-map.
  5. Sanity check (Adebayo): randomise the model's weights, recompute the map, and verify it changes. A map that stays the same cannot be explaining the model.

From a neural network to the Atari

The network \(f\)The Atari 2600 VCS running the ROM, emulated bit-exactly by jutari; its differentiable twin is JuTari.Diff.
The ReLUsThere are none. The soft VCS's nonlinearities are straight-through round/clamp (identity backward), the stop-gradient branch estimator, and the distance-softmax read used only in the relaxation study. So the guided rule is applied once, to the assembled gradient over RAM.
The input \(x\)The 128 RAM bytes at the intervention frame \(f^*\).
The output \(y\)A content output (one RAM byte read one-hot) and a position output (screen pixels changed versus the un-intervened frame, made differentiable by the bilinear sampler).
Randomising the weightsRandomising the program: every ROM byte is replaced by a random byte, except the CPU's reset/interrupt vectors so the console still boots.
“Is the map right?”The intervention oracle: poke each cause, re-run the real ROM, measure \(|\Delta y|\).

How we apply it to the VCS

Our substrate has no deep stack of ReLUs. The runner says so plainly, and implements guided backprop as the rectification rule \(g \mapsto g\odot\mathbb{1}[g>0]\) applied to the gradient \(\partial y/\partial u\) over the RAM vector \(u\), followed by an absolute value. It returns the guided map and the vanilla \(|\partial y/\partial u|\), so the effect of the rule can be measured directly.

Read the code

XAI the interpretability method   substrate the bit-exact emulator it runs on (jutari, Julia).

Reading the result

On the content output the guided bars are the vanilla saliency bars, exactly. Any agreement with the oracle is saliency's agreement. On the position output the map is often empty, either because the naive gradient is zero or because the rule removed a negative sampler slope. Then look at the sanity-check box. A cosine similarity near 1 between the real and the scrambled-program maps means the map does not depend on the program. A faithful map must change when the model is destroyed; this one stays the same. The oracle, by contrast, re-runs the program and would see the difference at once.

Pitfalls

Try it yourself

julia --project=jutari tools/xai_study/phaseB_attribution/guided_backprop.jl --games core --sanity

Writes guided_backprop_<game>_{content,ball_pixel}.json/.npz and guided_backprop_core_summary.json into tools/xai_study/phaseB_attribution/out/. The sanity check boots three randomised ROMs per output; pass --no-sanity for a faster smoke run.

Original papers & further reading
